APPLICATIONS USING UNIVERSAL EXPANSION JOINTS

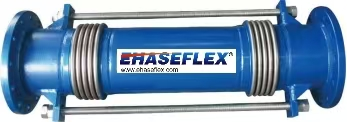

EH-800H:
The universal expansion joint is highly effective in absorbing lateral deflection.
This design is used to absorb axial movement, angular rotation or any combination of the three.
It shows a tied universal bellows used to absorb lateral deflection in a single plane “Z” bend.
One Plane System, It can be instead of two hinged joints to absorb the movement.
