Understanding Of Omega Bellows

For OMEGA-Type Dense Bellows.

The smaller displacement per convolution, the longer the service life.
This design eliminates the issue of localized stress concentration, greatly enhancing durability.

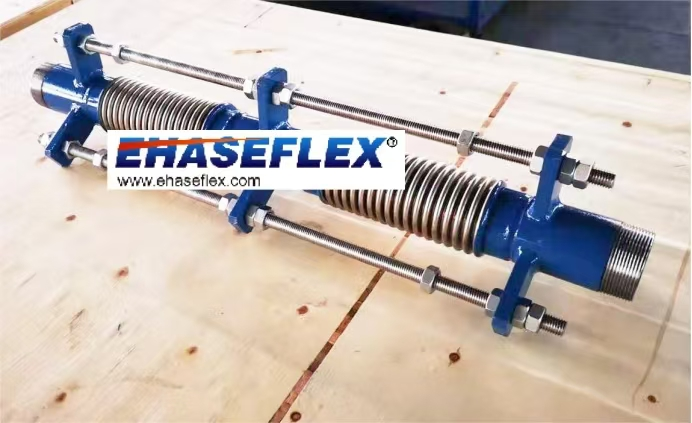

EH-700H  Omega expansion joint metal

Release the stress distributing to every point averagely.
Do the best effective to absorb the Expansion of Pipe line.
Designed to absorb large amounts of axial movement.
